Series 4

Series 4

AISI 304 / AISI 316 Stainless Steel

The anchor types detailed below are not representative of the whole production line, only the most commonly used.

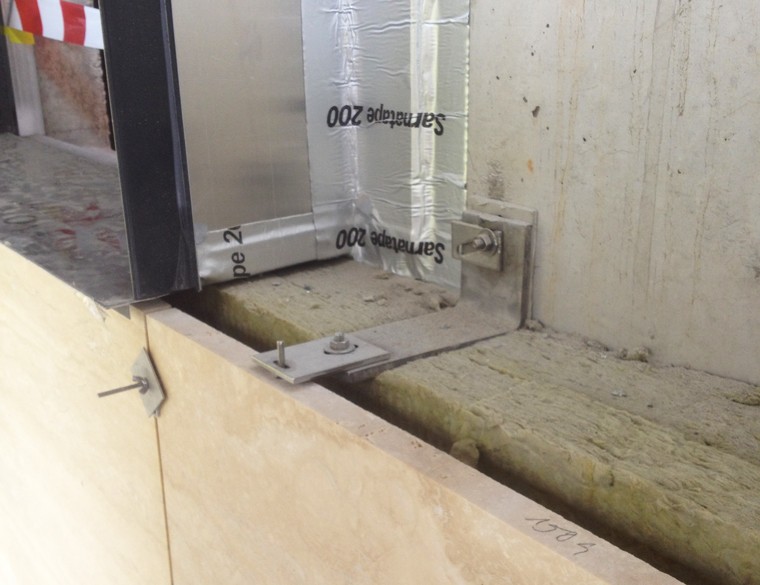

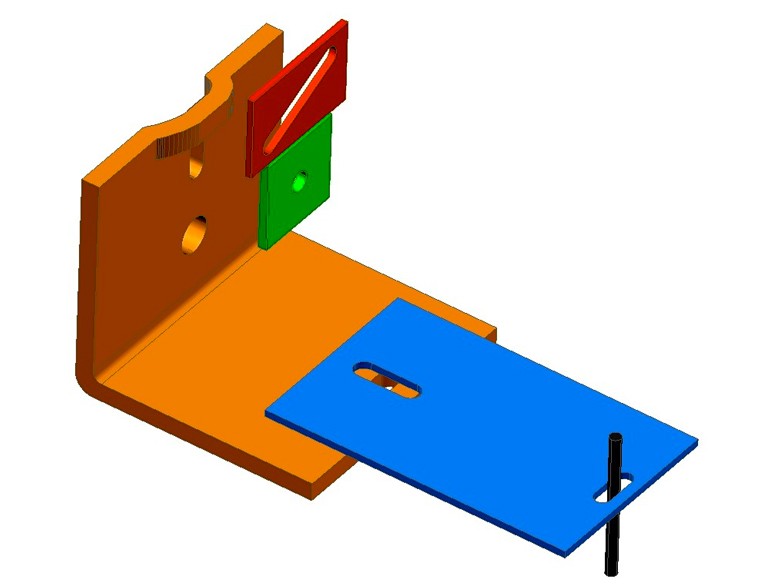

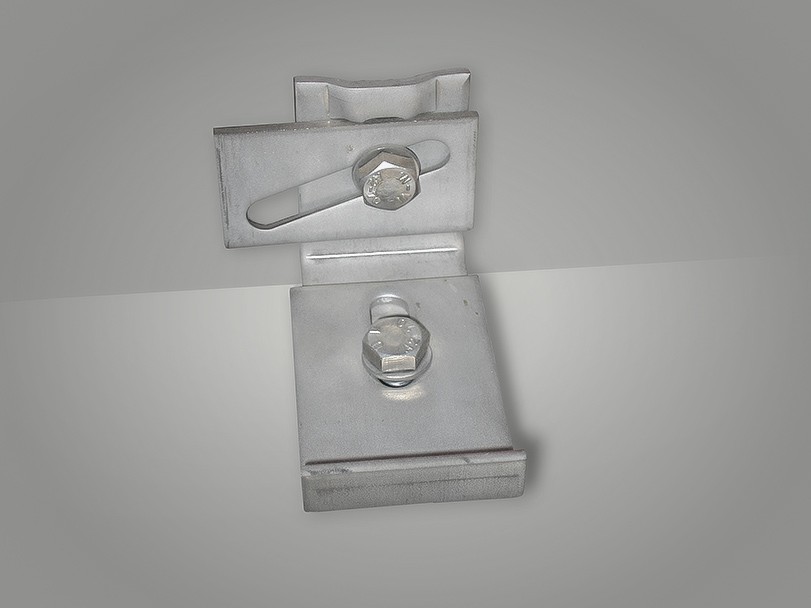

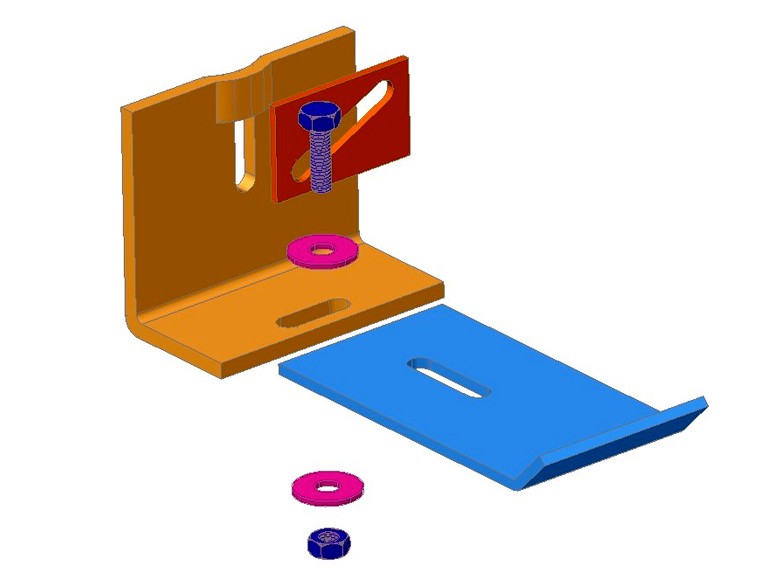

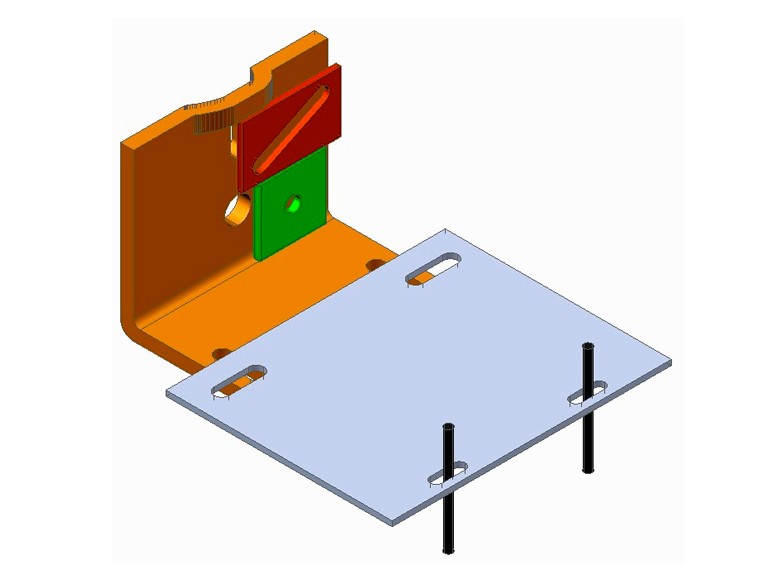

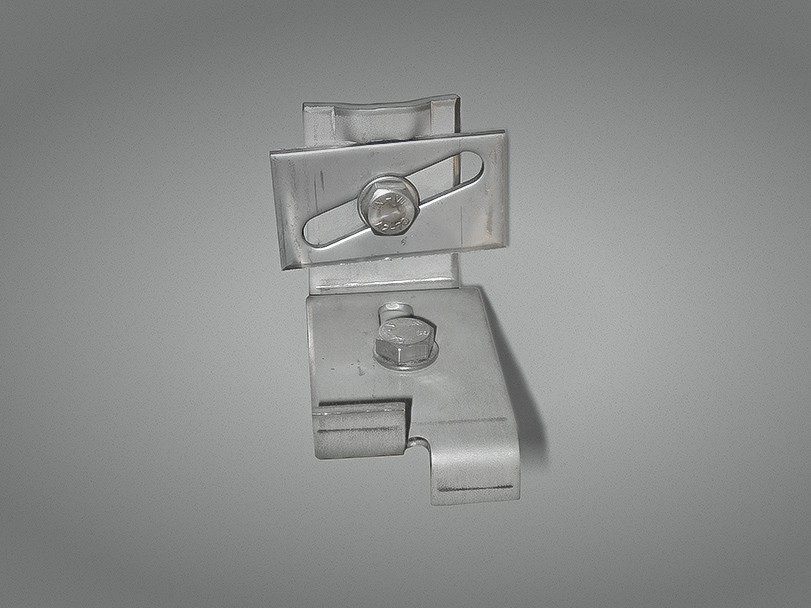

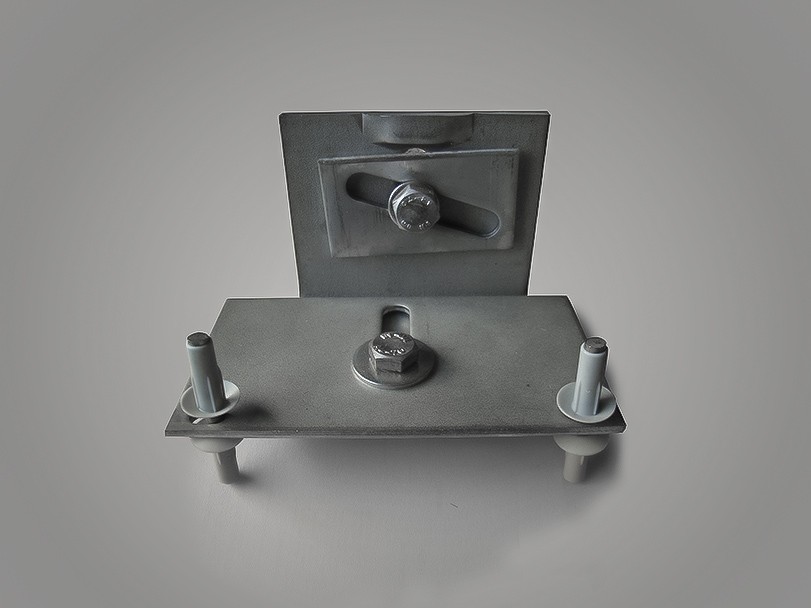

Load-bearing anchors and fittings are made in an "L" shape with a sliding terminal.
Perfect for medium-sized recesses.
Mounting with screw anchors, resin anchors, screws etc. ... depending on the type of material (brick masonry, concrete, metal structure etc...)
Adjustable in three directions.
The load bearing fittings feature vertical anti-skid systems.
The number of terminal types available guarantees excellent flexibility

Shape, size and thickness are defined according to the specifications of each building.

By way of example, the table details some of the most commonly used anchors.

BASIS
LOAD		d	CODE
N	mm.	+/- adj.
150	95	80 - 110	L4 - 15 - 95
300	95	80 - 110	L4 - 30 - 95
300	120	105 - 135	L4 - 30 - 120
300	145	130 - 160	L4 - 30 - 145
450	80	65 - 95	L3 - 45 - 80
450	120	105 - 135	L4 - 45 - 120
450	145	130 - 160	L4 - 45 - 145
MAIN CODE KEY (L4 - 15 - 95) L L = Load bearing R = Fitting 3 Series 12 Load (L.= Vert. R = Hor.) 80 Distance in axe (d)

TERMINALS
LOAD		CODE
N	I
150	75	L4 - A - 15 - 75
300	75	L4 - A - 30 - 75
450	75	L4 - A - 45 - 75

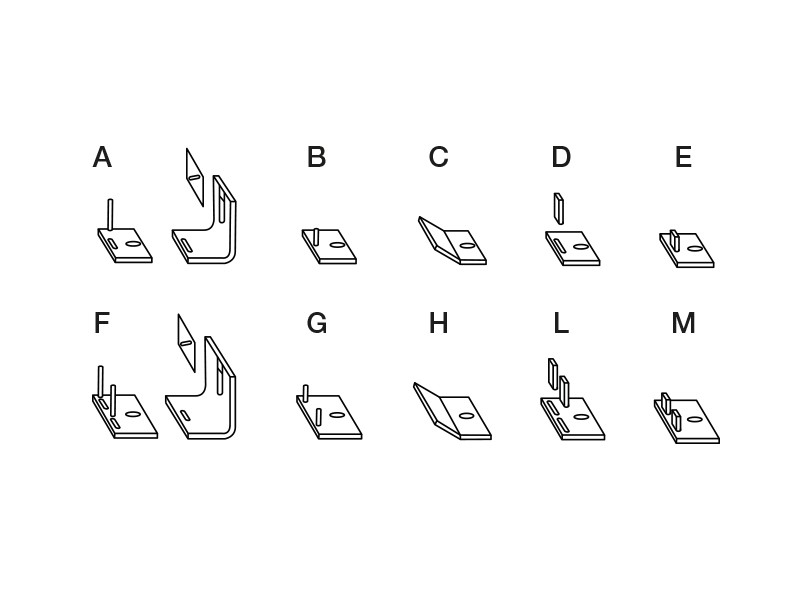

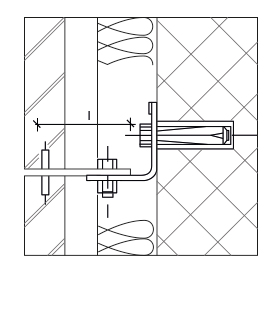

TERMINAL CODE KEY (L4 - A - 15 - 75) L L = Load Bearing R = Restraining 3 Series A Anchor Type (see drawing) 12 Load (L.=Vert. R=Horiz.) 70 Terminal Lenght
