Series 2

Series 2

AISI 304 / AISI 316 Stainless Steel

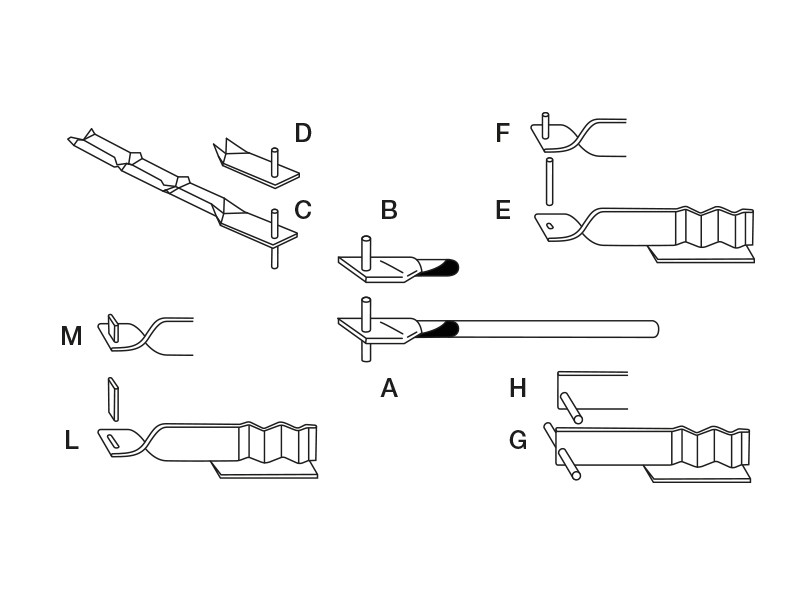

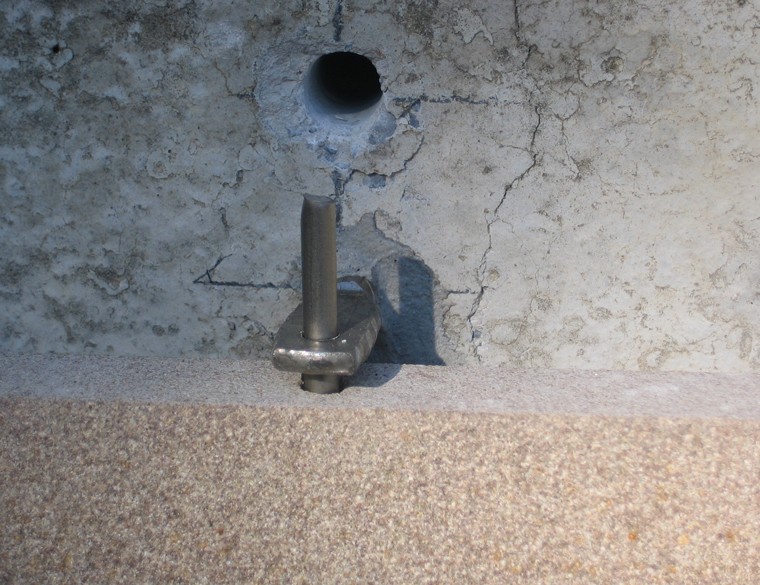

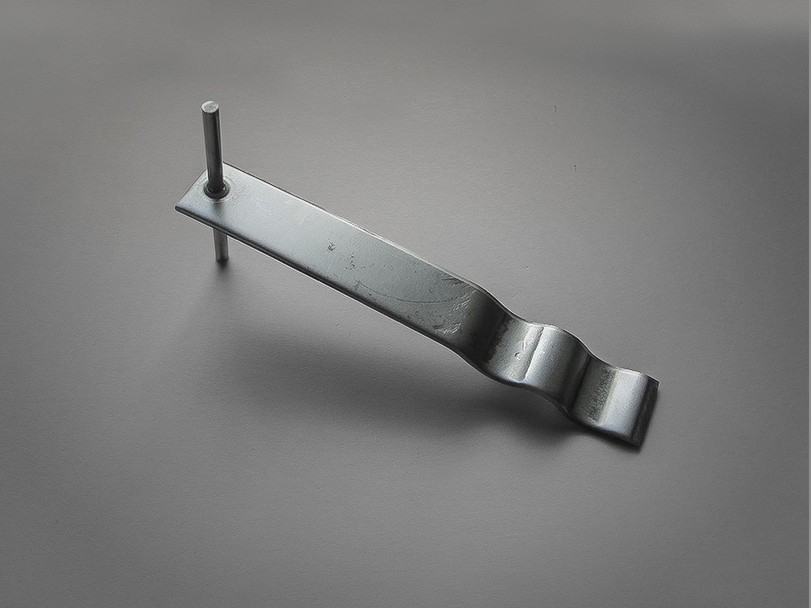

The anchor types detailed below, are not representative of the whole production line, only the most used.

Shape, size and thickness are defined according to the specifications of each building.

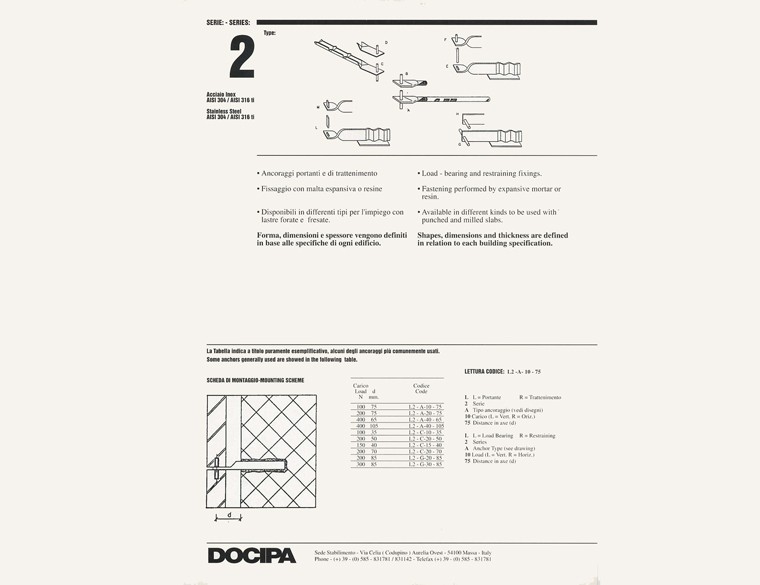

By way of example, the table details some of the most commonly used anchors.

LOAD		CODE
N	mm.
100	30	L1 - A - 10 - 30
150	35	L1 - A - 15 - 35
150	45	L1 - A - 15 - 45
150	55	L1 - A - 15 - 55
300	35	L1 - A - 30 - 35
300	45	L1 - A - 30 - 45
300	55	L1 - A - 30 - 55
450	35	L1 - A - 45 - 35
450	45	L1 - A - 45 - 45
450	55	L1 - A - 45 - 55
LETTURA CODICE (L1 - A - 10 - 30) L L = Load Bearing R = Restraining 1 Series A Anchor Type 10 Load (L.=Vert. R=Horiz.) 30 Distance in axe
