Series 3

Series 3

AISI 304 / AISI 316 Stainless Steel

The anchor types detailed below are not representative of the whole production line, only the most used.

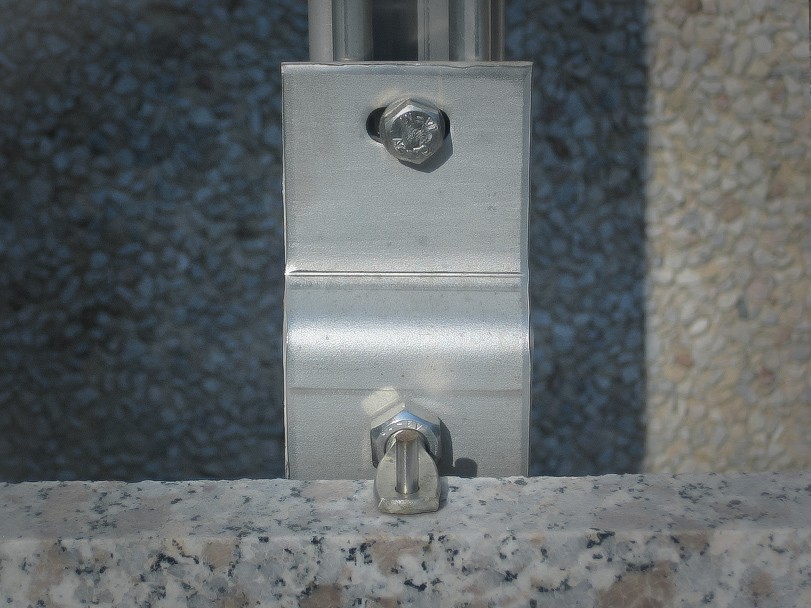

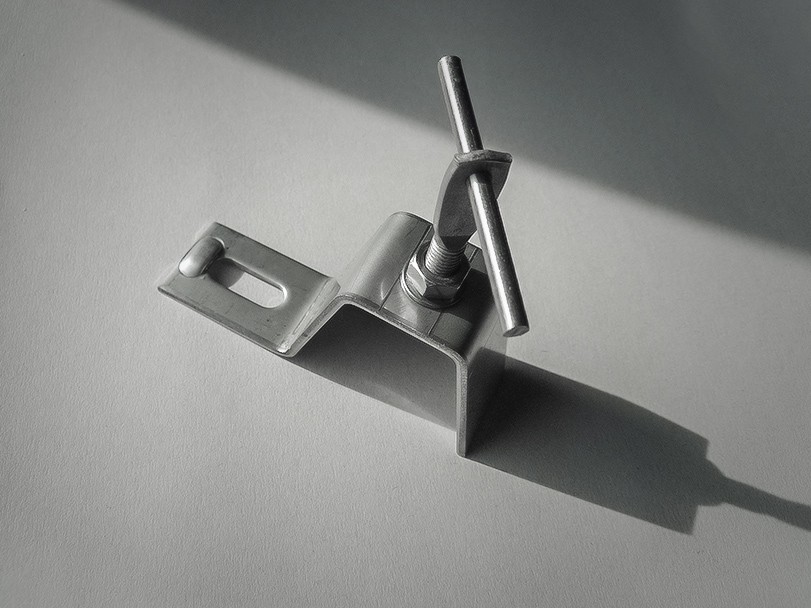

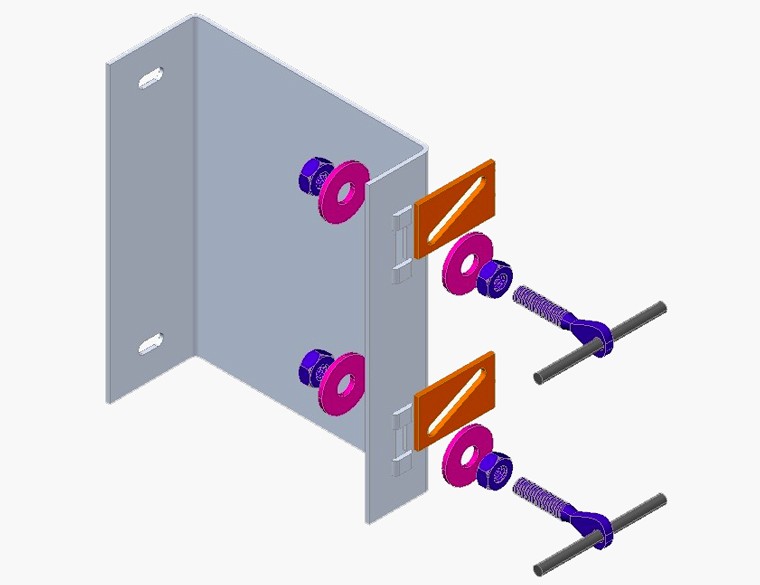

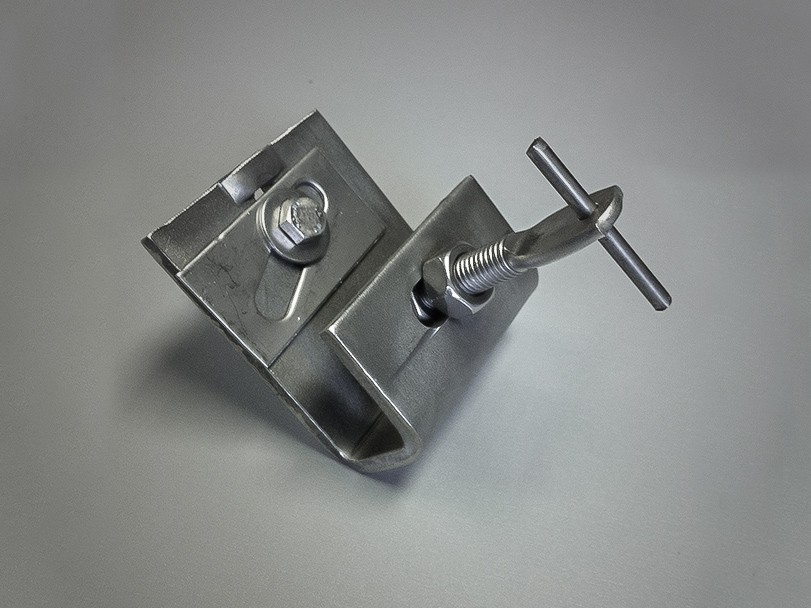

The load-bearing supports and fittings are made with corrugated sheet metal and a screw terminal.
Perfect for medium-sized recesses.

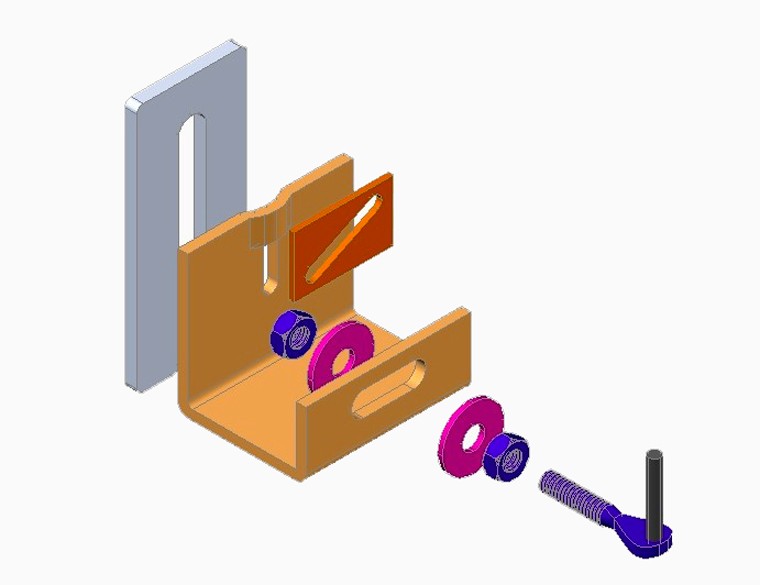

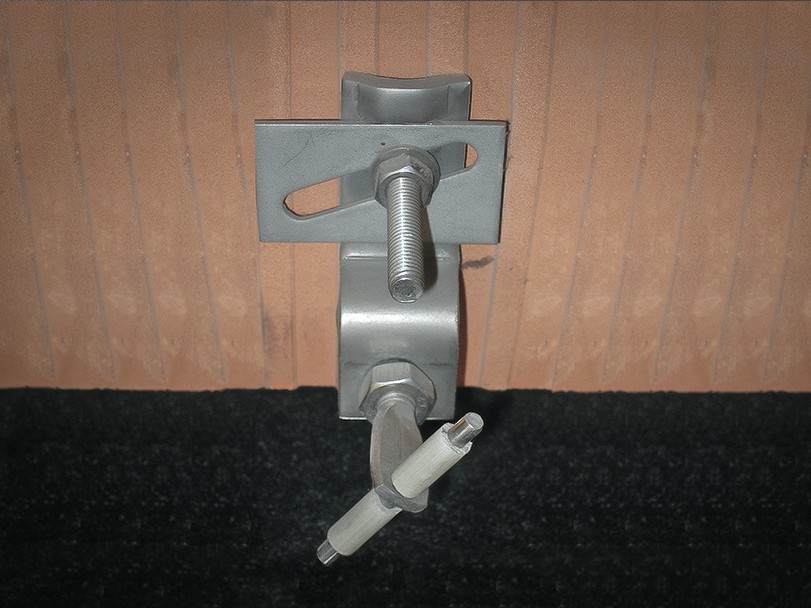

Mounting with screw anchors, resin anchors, screws etc. ... depending on the type of material (brick masonry, concrete, metal structure etc...)
Adjustable in three directions.
Suitable for use on both vertical and horizontal edges.
The load bearing fittings feature vertical anti-skid systems.

Shape, size and thickness are defined according to the specifications of each building.

By way of example, the table details some of the most commonly used anchors.

BASIS
LOAD		d	CODE
N	mm.	+/- adj.
120	80	65 - 95	L3 - 12 - 80
120	105	90 - 120	L3 - 12 - 105
250	80	65 - 95	L3 - 25 - 80
250	105	90 - 120	L3 - 25 - 105
250	130	115 - 145	L3 - 25 - 130
450	80	65 - 95	L3 - 45 - 80
450	105	90 - 120	L3 - 45 - 105
450	130	115 - 145	L3 - 45 - 130
750	80	65 - 95	L3 - 75 - 80

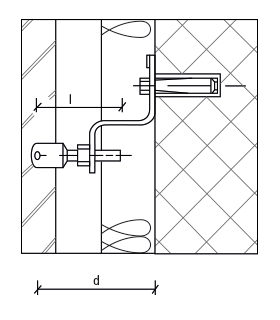

CODE KEY (L3 - 12 - 80) L L = Load bearing R = Fitting 3 Series 12 Load (L.= Vert. R = Hor.) 80 Distance in axe (d)

TERMINALS
LOAD		CODE
N	I
120	70	L3 - A - 12 - 70
250	75	L3 - A - 25 - 75
450	75	L3 - A - 45 - 75

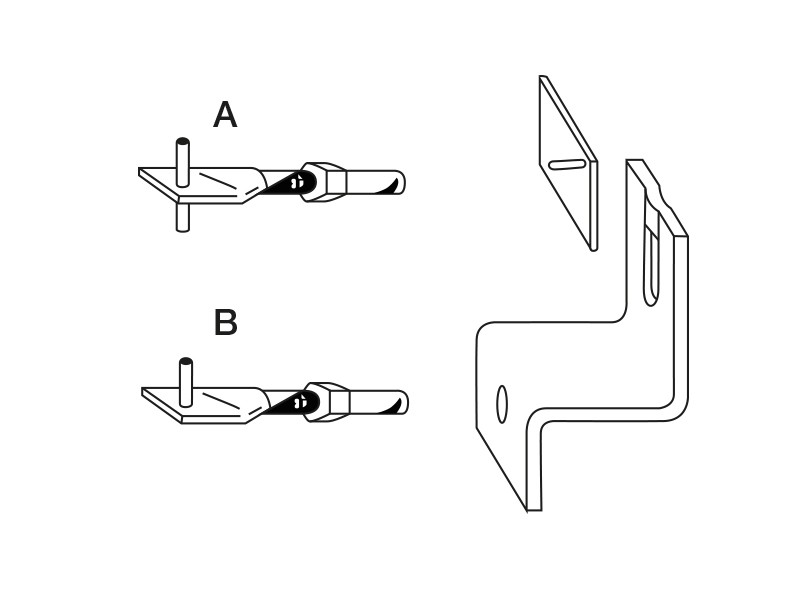

TERMINAL CODE KEY (L3 - A - 12 - 70) L L = Load Bearing R = Restraining 3 Series A Anchor Type (see drawing) 12 Load (L.=Vert. R=Horiz.) 70 Terminal Lenght
