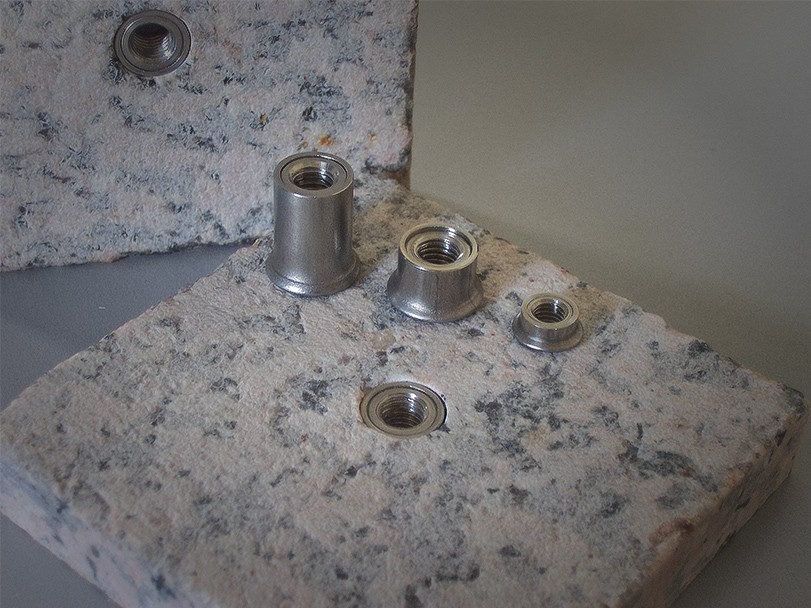

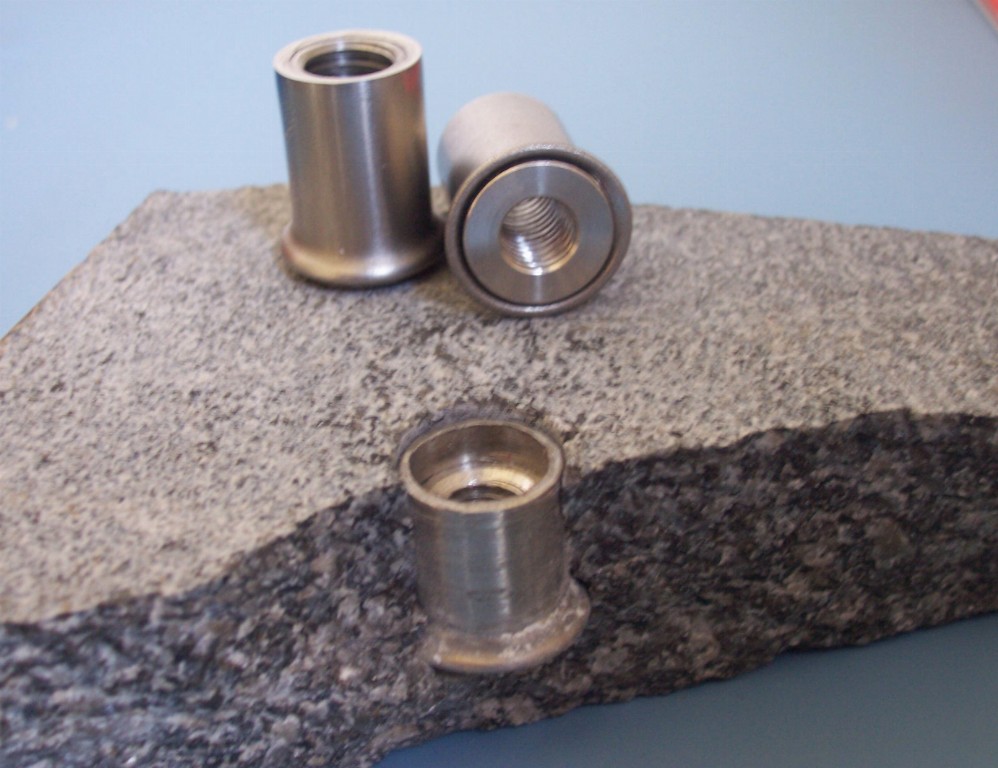

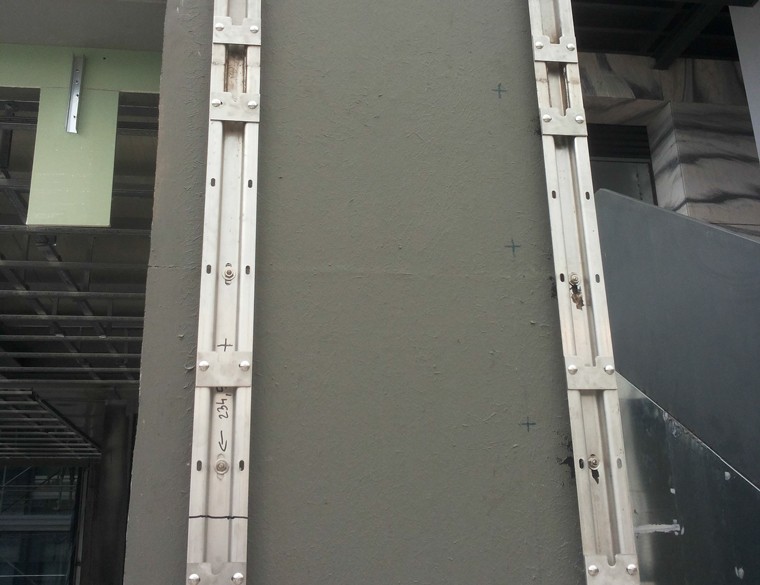

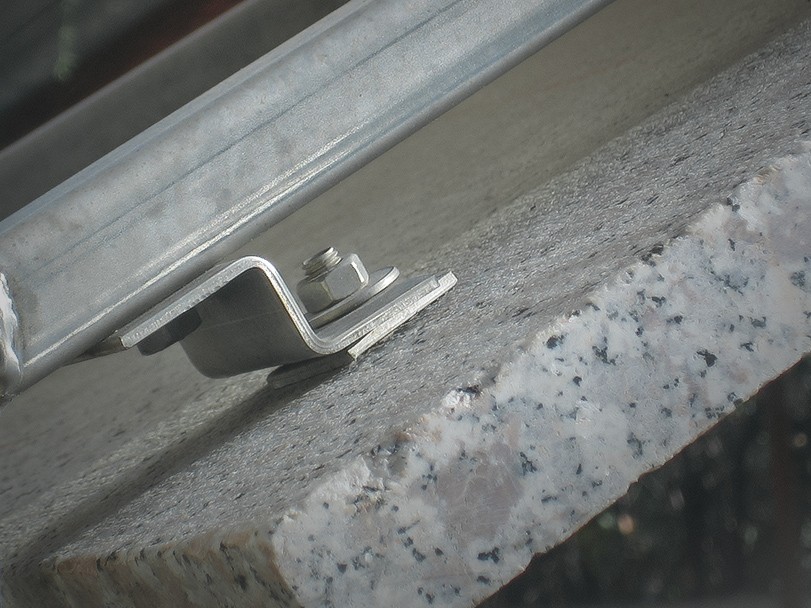

GSD type insert

GSD type insert

Patented system

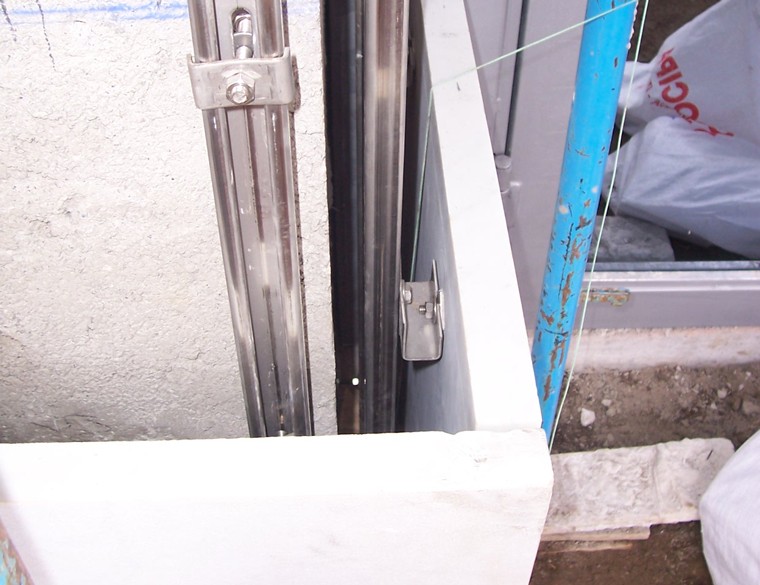

Fitting method for GSD Type Insert

  • It does not create internal stresses in the base material, therefore ensuring a high degree of security when mounting.
  • Easy and quick application with a normal insert-extraction handgun or automatic hardware.
  • It can be mounted directly in the laboratory as they are no protruding parts. This also means a reduction of packaging and transport issues.
  • Recommended for safety fasteners with heavy loads, especially for thin layers.
  • A fast and effective mechanical assembly system, without using resins.
AISI 304 / AISI 316 Stainless Steel
GSD
TYPEM
Bolt thread
d
Hole diameter
Ø mm.
D
Groove diameter
Ø mm.
h
Drilling depth
mm.
t
Max fixing thickness
mm.
GSD M8x10 M8 14 18 13 10
GSD M8x15 M8 14 18 17 15
GSD M8x20 M8 14 18 22 20
1. Stainless steel  AISI 304 (A2)
1. Stainless steel  AISI 316 (A4)
TYPEGSD TypeStone thickness mm.Pull-out strength KN
White Carrara marble M8x15
M8x15
20
30
3,3(*)
4,8(*)
Impala black granite M8x15
M8x15
20
30
4,7(*)
8,5(*)
Tarn Grey granite M8x15 30 3,1(*)
New Imperial Red granite M8x15 30 3,7(*)
Texas Red granite M8x15 30 6,1(*)
Vicenza limestone M8x20 50 7,4(**)
Agglomerate Cottostone© M8x7 13 2,5(**)
(*) Specimen failure at centerline
(**) Hole failure
